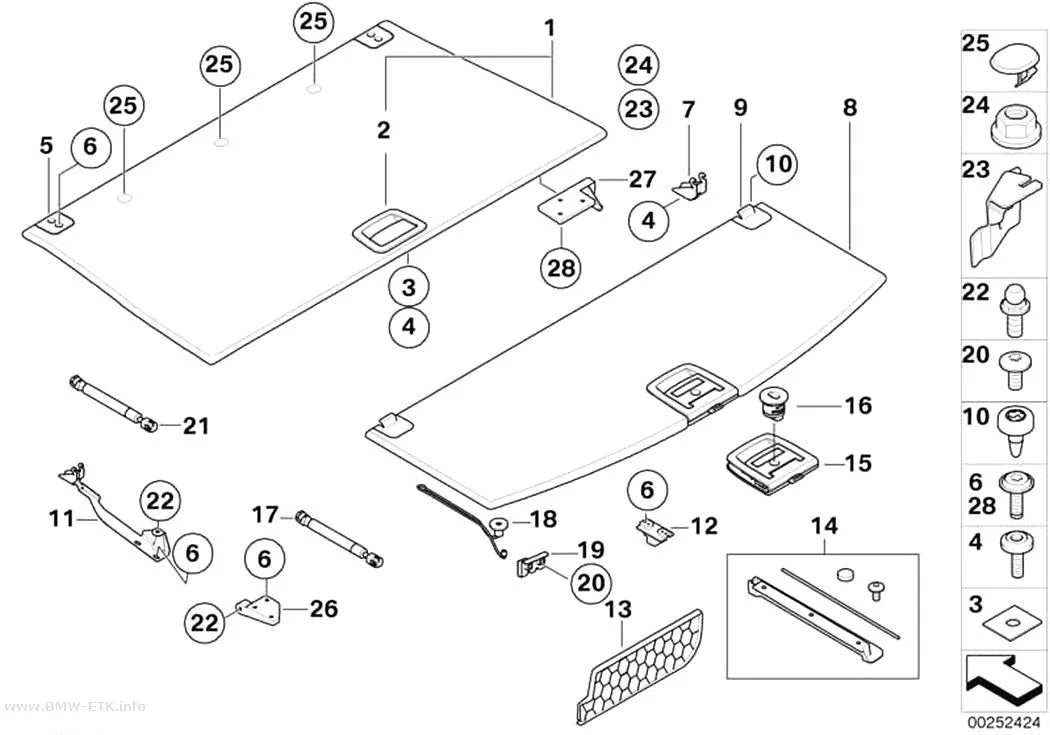

Obloga poda prtljažnika
51_5680 · BMW E61 525d · Oprema karoserije (unutra i spolja)
| Poz. | Broj dela | Opis | Kol. |
|---|---|---|---|
| 11 | 51 47 7 112 336 | Kapica pričvrsne omče · Fastening loop cap | 4 |
| 02 | 51 47 6 968 323 | Obloga poprečne grede · Covering cross member | 1 |
| 02 | 51 47 6 968 324 | Obloga poprečne grede · Covering cross member | 1 |
| 01 | 51 47 6 968 329 | Podna obloga prtljažnika · Floor carpet, luggage compartment | 1 |
| 01 | 51 47 6 968 330 | Podna obloga prtljažnika · Floor carpet, luggage compartment | 1 |
| 02 | 51 47 6 977 024 | Obloga poprečne grede · Covering cross member | 1 |
| 01 | 51 47 6 977 029 | Podna obloga prtljažnika · Floor carpet, luggage compartment | 1 |
| 01 | 51 47 6 987 028 | Podna obloga prtljažnika · Floor carpet, luggage compartment | 1 |
| 02 | 51 47 6 987 039 | Obloga poprečne grede · Covering cross member | 1 |
| 05 | 51 47 6 987 045 | Završni poklopac obloge utovarne ivice · End cover, load edge trim | 6 |
| 06 | 07 14 7 137 416 | Samourezni zavrtanj sa cilindričnom glavom · Fillister head self-tapping screw | 4 |
| 04 | 51 47 6 987 059 | Zaštita utovarnog praga · Loading sill cover | 1 |
| 14 | 51 47 7 066 370 | Hood catch floor carpet | 2 |
| 12 | 51 47 7 075 913 | Držač poda prtljažnika, sa mogućnošću zaključavanja · Retainer, loading floor, lockable | 1 |
| 11 | 51 47 7 110 412 | Kapica pričvrsne omče · Fastening loop cap | 4 |
| 11 | 51 47 7 123 686 | Kapica pričvrsne omče · Fastening loop cap | 4 |
| 02 | 51 47 7 129 145 | Obloga poprečne grede · Covering cross member | 1 |
| 01 | 51 47 7 129 930 | Podna obloga prtljažnika · Floor carpet, luggage compartment | 1 |
| 16 | 51 47 7 148 826 | Gas spring, floor carpet | 2 |
| 04 | 51 47 7 149 561 | Zaštita utovarnog praga · Loading sill cover | 1 |
| 04 | 51 47 7 149 562 | Zaštita utovarnog praga · Loading sill cover | 1 |
| 04 | 51 47 7 149 563 | Zaštita utovarnog praga · Loading sill cover | 1 |
| 05 | 51 47 7 152 437 | Završni poklopac obloge utovarne ivice · End cover, load edge trim | 6 |
| 05 | 51 47 7 152 438 | Završni poklopac obloge utovarne ivice · End cover, load edge trim | 6 |
| 05 | 51 47 7 152 439 | Završni poklopac obloge utovarne ivice · End cover, load edge trim | 6 |
| 09 | 51 47 7 193 695 | Tie-down ring, chrome | 4 |
| 11 | 51 47 8 149 010 | Kapica pričvrsne omče · Fastening loop cap | 4 |
| 27 | 51 21 9 130 334 | Torx zavrtanj sa podloškom · Torx-bolt with washer | 2 |
| 01 | 51 47 7 157 612 | Tepih poda, prednji · Floor carpet, front | 1 |
| 01 | 51 47 7 157 661 | Tepih poda, prednji · Floor carpet, front | 1 |
| 01 | 51 47 7 157 662 | Tepih poda, prednji · Floor carpet, front | 1 |
| 01 | 51 47 7 157 663 | Tepih poda, prednji · Floor carpet, front | 1 |
| 01 | 51 47 6 987 031 | Tepih poda, prednji · Floor carpet, front | 1 |
| 01 | 51 47 6 960 437 | Tepih poda, prednji · Floor carpet, front do 05/2005 | 1 |
| 01 | 51 47 6 960 441 | Tepih poda, prednji · Floor carpet, front do 05/2005 | 1 |
| 01 | 51 47 6 960 439 | Tepih poda, prednji · Floor carpet, front do 09/2005 | 1 |
| 01 | 51 47 6 960 443 | Tepih poda, prednji · Floor carpet, front do 10/2004 | 1 |
| 01 | 51 47 6 968 335 | Tepih poda, prednji · Floor carpet, front do 05/2005 | 1 |
| 01 | 51 47 6 968 336 | Tepih poda, prednji · Floor carpet, front do 05/2005 | 1 |
| 01 | 51 47 6 977 026 | Tepih poda, prednji · Floor carpet, front do 09/2005 | 1 |
| 02 | 51 47 6 965 148 | Udubljenje za ručku · Handle recess | 1 |
| 02 | 51 47 6 965 250 | Udubljenje za ručku · Handle recess | 1 |
| 02 | 51 47 6 965 251 | Udubljenje za ručku · Handle recess | 1 |
| 02 | 51 47 6 965 252 | Udubljenje za ručku · Handle recess | 1 |
| 02 | 51 71 9 125 443 | Udubljenje za ručku · Handle recess | 1 |
| 03 | 51 47 8 120 947 | Podloška · Washer | 2 |
| 04 | 07 14 6 985 055 | Torx zavrtanj sa podloškom · Torx-bolt with washer | 2 |
| 05 | 51 47 6 951 091 | Nosač šarke podne obloge · Hinge bracket floor carpet | 2 |
| 06 | 07 14 7 193 038 | Torx zavrtanj sa podloškom · Torx-bolt with washer | po potrebi |
| 07 | 51 47 7 148 691 | Šarka · Hinge | 2 |
| 08 | 51 47 9 173 795 | Podna obloga, zadnja · Floor carpet, rear | 1 |
| 08 | 51 47 9 173 796 | Podna obloga, zadnja · Floor carpet, rear | 1 |
| 08 | 51 47 9 173 797 | Podna obloga, zadnja · Floor carpet, rear | 1 |
| 08 | 51 47 9 173 798 | Podna obloga, zadnja · Floor carpet, rear | 1 |
| 08 | 51 47 9 173 799 | Podna obloga, zadnja · Floor carpet, rear | 1 |
| 08 | 51 47 9 173 865 | Podna obloga, zadnja · Floor carpet, rear do 04/2005 | 1 |
| 08 | 51 47 9 173 866 | Podna obloga, zadnja · Floor carpet, rear do 04/2005 | 1 |
| 08 | 51 47 9 173 867 | Podna obloga, zadnja · Floor carpet, rear do 04/2005 | 1 |
| 09 | 51 47 6 965 253 | Šarka · Hinge | 2 |
| 09 | 51 47 6 965 254 | Šarka · Hinge | 2 |
| 09 | 51 47 6 965 255 | Šarka · Hinge | 2 |
| 09 | 51 47 6 965 256 | Šarka · Hinge | 2 |
| 09 | 51 47 9 115 938 | Šarka · Hinge | 2 |
| 09 | 51 47 9 115 940 | Šarka · Hinge | 2 |
| 09 | 51 47 9 125 438 | Šarka · Hinge | 2 |
| 10 | 07 12 9 907 533 | Zavrtanj · Screw | 2 |
| 11 | 51 47 7 148 690 | Nosač gasnog amortizera · Gas pressurized spring bracket | 1 |
| 12 | 51 71 7 148 814 | Bracket, dividing element | 1 |
| 13 | 51 71 7 148 815 | Pregradni element · Dividing element | 2 |
| 14 | 51 71 7 148 816 | Komplet šarki · Set of hinges | 2 |
| 15 | 51 47 6 958 161 | Ručka tepiha poda prtljažnog prostora · Handle, floor carpet-luggage comp | 1 |
| 15 | 51 47 6 958 162 | Ručka tepiha poda prtljažnog prostora · Handle, floor carpet-luggage comp | 1 |
| 15 | 51 47 6 958 163 | Ručka tepiha poda prtljažnog prostora · Handle, floor carpet-luggage comp | 1 |
| 15 | 51 47 6 958 164 | Ručka tepiha poda prtljažnog prostora · Handle, floor carpet-luggage comp | 1 |
| 15 | 51 47 9 125 437 | Ručka tepiha poda prtljažnog prostora · Handle, floor carpet-luggage comp | 1 |
| 16 | 51 47 6 968 004 | Brava · Lock | 1 |
| 17 | 51 47 9 139 349 | Gas spring, flor carpet, rear | 1 |
| 18 | 51 47 6 953 353 | Catch strap, floor carpet | 2 |
| 19 | 51 47 6 960 419 | Bracket, catch strap, floor carpet | 2 |
| 20 | 41 61 8 220 056 | Torx zavrtanj sa podloškom · Torx-bolt with washer | 4 |
| 21 | 51 47 7 148 817 | Gas spring, flor carpet, front | 1 |
| 22 | 51 24 8 172 795 | Kuglasta čivija · Ball pin | 2 |
| 23 | 51 47 7 156 513 | Nosač, levo · Bracket, left | 1 |
| 23 | 51 47 7 156 514 | Nosač, desno · Bracket, right | 1 |
| 24 | 07 14 9 156 628 | Šestougaona navrtka sa pločicom · Hex nut with plate | 2 |
| 25 | 51 47 6 987 061 | Pokrivna kapica · Covering cap | 3 |
| 25 | 51 47 8 217 262 | Pokrivna kapica · Covering cap | 3 |
| 25 | 51 47 8 217 295 | Pokrivna kapica · Covering cap | 3 |
| 25 | 51 47 8 217 296 | Pokrivna kapica · Covering cap | 3 |
| 25 | 51 47 8 217 297 | Pokrivna kapica · Covering cap | 3 |
| 25 | 51 47 8 217 298 | Pokrivna kapica · Covering cap | 3 |
| 26 | 51 71 7 148 818 | Nosač gasnog amortizera · Gas pressurized spring bracket | 1 |
| 27 | 51 47 6 953 359 | Zadržni kuku, podna obloga prtljažnika, leva · Ret.hook,floor panel,luggage comp., left | 1 |
| 27 | 51 47 6 953 360 | Zadržna kuka podne ploče prtljažnog prostora, desno · Ret.hook,floor panel,luggage comp.,right | 1 |
| 28 | 46 63 7 659 479 | Zavrtanj sa upuštenom glavom i prirubnicom · Fillister head screw with collar | 6 |
Brojeve delova proveri po VIN-u pre kupovine: u katalogu isti deo ima više izvedbi, zavisno od motora i godišta proizvodnje.
