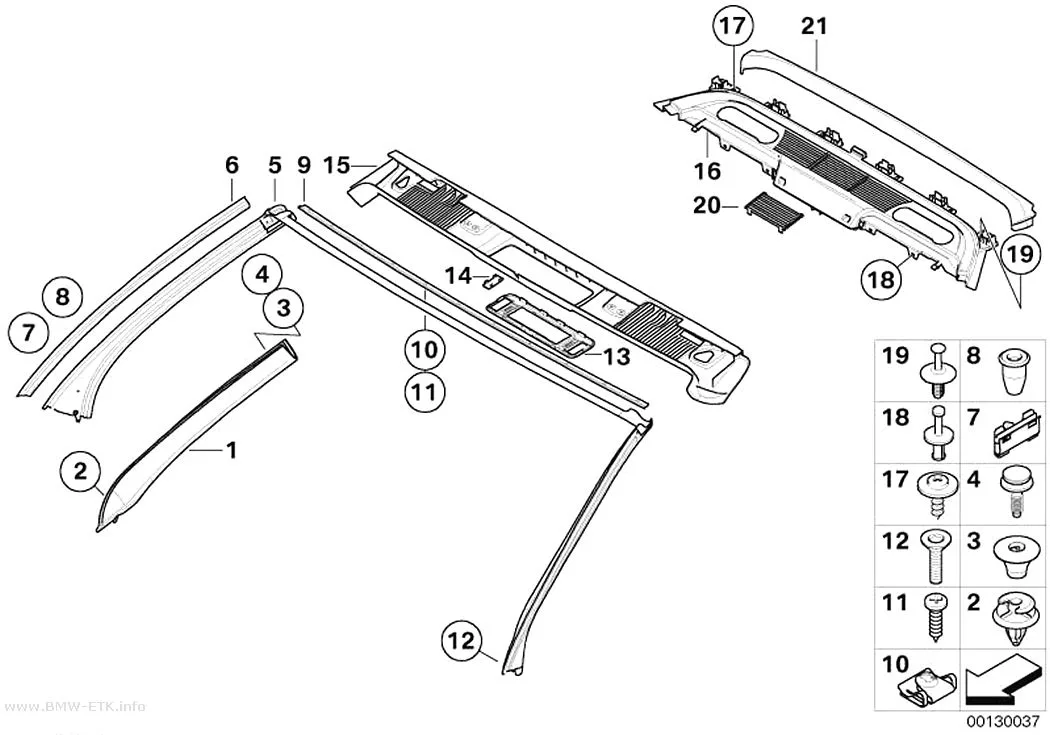

Unutrašnje obloge i paneli
51_5270 · BMW E64 630i · Oprema karoserije (unutra i spolja)
| Poz. | Broj dela | Opis | Kol. |
|---|---|---|---|
| 01 | 51 43 7 074 017 | Obloga A-stuba, levo · Cover, column A left | 1 |
| 01 | 51 43 6 976 729 | Obloga A-stuba, levo · Cover, column A left do 09/2005 | 1 |
| 01 | 51 43 7 074 018 | Desna obloga A-stuba · Cover, column A right | 1 |
| 01 | 51 43 6 976 730 | Desna obloga A-stuba · Cover, column A right do 09/2005 | 1 |
| 02 | 51 43 7 001 492 | Kopča · Clip | po potrebi |
| 03 | 07 14 7 110 847 | Štipaljka, donji deo · Clip, bottom part | 4 |
| 04 | 07 14 7 110 857 | Kopča, gornji deo · Clip, upper part | 4 |
| 05 | 51 76 7 175 474 | Sealing windscreen panel, column A Samo uz odgovarajući prateći deo | 1 |
| -- | 54 34 7 172 025 | Zaptivka levog krovnog rama · Left roof frame gasket | 1 |
| -- | 54 34 7 172 026 | Zaptivka desnog krovnog rama · Right roof frame gasket | 1 |
| -- | 54 34 7 172 027 | Gasket rear left | 1 |
| -- | 54 34 7 172 028 | Gasket rear right | 1 |
| -- | 54 34 7 172 029 | Cowl gasket | 1 |
| 06 | 51 76 7 008 787 | Lajsna A-stuba, leva · Strip, column A left | 1 |
| 06 | 51 76 7 008 788 | Lajsna A-stuba, desno · Strip, column A right | 1 |
| 06 | 51 76 7 905 421 | Lajsna A-stuba, leva · Strip, column A left do 09/2004 | 1 |
| 06 | 51 76 7 905 422 | Lajsna A-stuba, desno · Strip, column A right do 09/2004 | 1 |
| 07 | 51 32 8 257 199 | Kopča · Clip | po potrebi |
| 08 | 51 31 8 150 943 | Gumena uvodnica · Grommet | po potrebi |
| 09 | 51 76 7 009 262 | Strip upper apron | 1 |
| 10 | 07 12 9 904 213 | Prestol-kavez · Prestol-cage | po potrebi |
| 11 | 41 00 9 175 577 | Samourezni zavrtanj sa cilindričnom glavom · Fillister head self-tapping screw | po potrebi |
| 12 | 07 12 9 902 329 | ISA zavrtanj sa podloškom · Isa screw with washer | 2 |
| 13 | 51 44 7 111 790 | Insert, windshield panel cover | 1 |
| 13 | 51 44 8 029 948 | Insert, windshield panel cover do 09/2005 | 1 |
| 14 | 51 44 7 111 791 | Prednja obloga · Covering front | 1 |
| 14 | 51 44 7 900 380 | Prednja obloga · Covering front do 09/2005 | 1 |
| 15 | 51 44 7 111 789 | Cover, windscreen panel, top | 1 |
| 15 | 51 44 8 029 947 | Cover, windscreen panel, top do 09/2005 | 1 |
| 16 | 51 46 7 129 402 | Air outlet grille, front | 1 |
| 16 | 51 46 7 129 403 | Air outlet grille, front | 1 |
| 16 | 51 46 7 129 404 | Air outlet grille, front | 1 |
| 16 | 51 46 7 129 405 | Air outlet grille, front | 1 |
| 17 | 07 14 9 159 443 | Samourezni zavrtanj sa cilindričnom glavom · Fillister head self-tapping screw | 2 |
| 18 | 51 11 1 908 077 | Proširujuća zakivna nitna · Expanding rivet | 5 |
| 19 | 51 11 8 174 185 | Proširujuća zakivna nitna · Expanding rivet | 4 |
| 20 | 51 46 7 111 779 | Poklopac mehanizma za otključavanje u slučaju nužde · Cover emergency unlocking | 1 |
| 20 | 51 46 7 111 780 | Poklopac mehanizma za otključavanje u slučaju nužde · Cover emergency unlocking | 1 |
| 20 | 51 46 7 111 781 | Poklopac mehanizma za otključavanje u slučaju nužde · Cover emergency unlocking | 1 |
| 20 | 51 46 7 111 782 | Poklopac mehanizma za otključavanje u slučaju nužde · Cover emergency unlocking | 1 |
| 21 | 51 46 7 070 371 | Air outlet grille, rear | 1 |
| 21 | 51 46 7 137 406 | Air outlet grille, rear do 09/2005 | 1 |
Napomene iz kataloga
- For vehicles with Fabr./leather"Finolino/Dakota"/anthrazit or Fabric/leather "Finolino/Dakota"/chateau or Leather "Dakota"/chateau or Leather "Dakota"/creambeige or Leather "Dakota"/schwarz or Leather "Pearl/Precision"/creambeige or Leather "Pearl/Precision"/schilf or Leather "Pearl/Precision"/schwarz
- Za vozila sa Shadow Line opremom visokog sjaja
Brojeve delova proveri po VIN-u pre kupovine: u katalogu isti deo ima više izvedbi, zavisno od motora i godišta proizvodnje.
