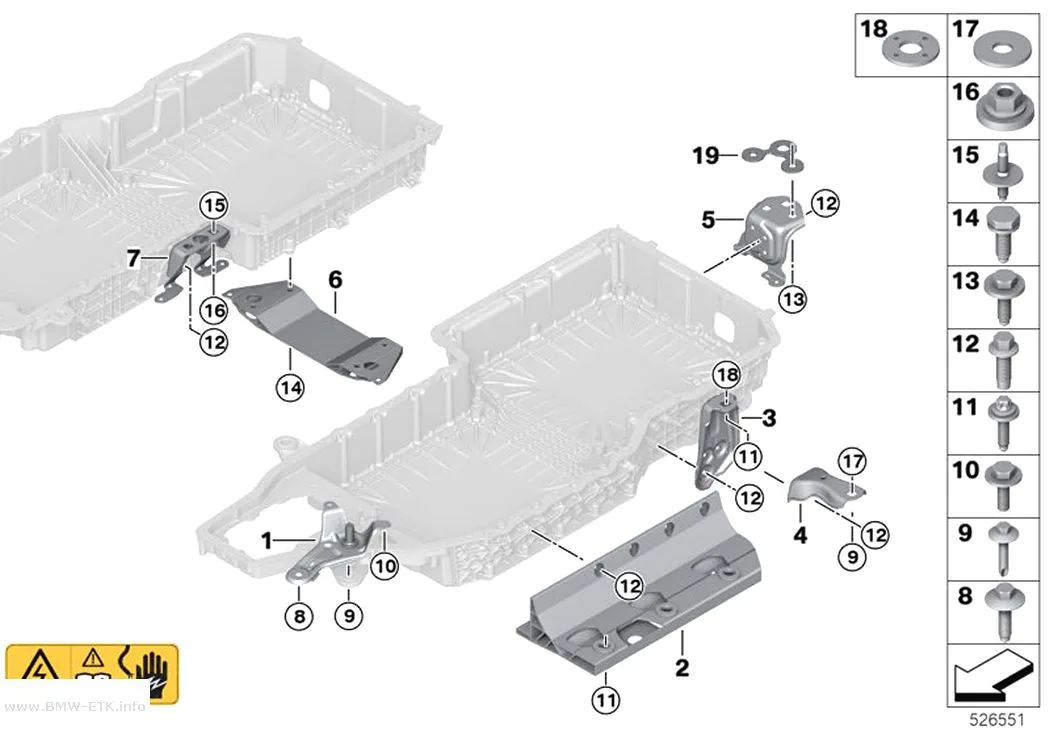

Nosač kućišta visokonaponske baterije
61_8185 · BMW G09 XM · Električni sistem vozila
| Poz. | Broj dela | Opis | Kol. |
|---|---|---|---|
| 14 | 61 21 9 855 662 | Kombinovani imbus zavrtanj · Combination Allen bolt | 4 |
| 07 | 61 27 8 841 430 | Carrier plate high-voltage battery | 1 |
| 07 | 61 27 8 841 429 | Carrier plate high-voltage battery | 1 |
| 04 | 61 27 8 839 615 | Housing upper section, HV battery | 1 |
| 03 | 61 27 8 858 063 | Seal for HV battery | 1 |
| 03 | 61 27 8 858 064 | Seal for HV battery | 1 |
| 02 | 61 27 9 846 631 | Housing, middle section | 1 |
| 02 | 61 27 9 846 632 | Housing, middle section | 1 |
| 01 | 61 27 9 846 629 | Housing, lower section HV battery | 1 |
| 01 | 61 27 9 846 630 | Housing, lower section HV battery | 1 |
| 09 | 64 50 7 911 467 | Šestougaoni zavrtanj sa podloškom · Hex bolt with washer | 6 |
| 01 | 61 25 8 841 431 | Holder high-voltage battery | 1 |
| 01 | 61 25 8 841 432 | Holder high-voltage battery | 1 |
| 02 | 61 25 8 841 554 | Nosač · Holder | 1 |
| 02 | 61 25 8 841 555 | Nosač · Holder | 1 |
| 03 | 61 25 8 841 423 | Holder high-voltage battery | 2 |
| 04 | 61 25 8 841 424 | Holder high-voltage battery | 2 |
| 05 | 61 25 8 841 425 | Holder high-voltage battery | 1 |
| 05 | 61 25 8 841 426 | Holder high-voltage battery | 1 |
| 06 | 61 25 8 841 553 | Connecting bridge | 1 |
| 07 | 61 25 8 841 422 | Holder high-voltage battery | 2 |
| 08 | 61 25 8 632 010 | Šestougaoni zavrtanj · Hex Bolt | 2 |
| 09 | 61 25 8 488 573 | Zavrtanj · Screw | 6 |
| 10 | 07 14 9 905 728 | Šestougaoni zavrtanj · Hex Bolt | 4 |
| 11 | 39 10 6 865 725 | Višenamenski zavrtanj · Multi-purpose bolt | 8 |
| 12 | 18 30 9 909 376 | Šestougaoni zavrtanj · Hex Bolt | 44 |
| 13 | 07 14 3 428 484 | Šestougaoni zavrtanj sa podloškom · Hex Bolt with washer | 4 |
| 14 | 07 14 8 499 876 | Sklop šestougaonog zavrtnja i podloške · Hexagon screw/washer assembly | 6 |
| 15 | 61 25 8 488 079 | Zavrtanj bez glave · Grub screw | 4 |
| 16 | 07 14 8 838 843 | Hexagon nut | 4 |
| 17 | 07 11 9 909 553 | Podloška · Washer | 2 |
| 18 | 61 25 8 488 088 | Podloška · Washer | 2 |
| 19 | 61 25 8 841 433 | Scheibe | 2 |
Brojeve delova proveri po VIN-u pre kupovine: u katalogu isti deo ima više izvedbi, zavisno od motora i godišta proizvodnje.
